Legion Meter
Legion USB Power Meter & Charge Accelerator for Android & iPhone Diagnostic Tool



Alternative Views:

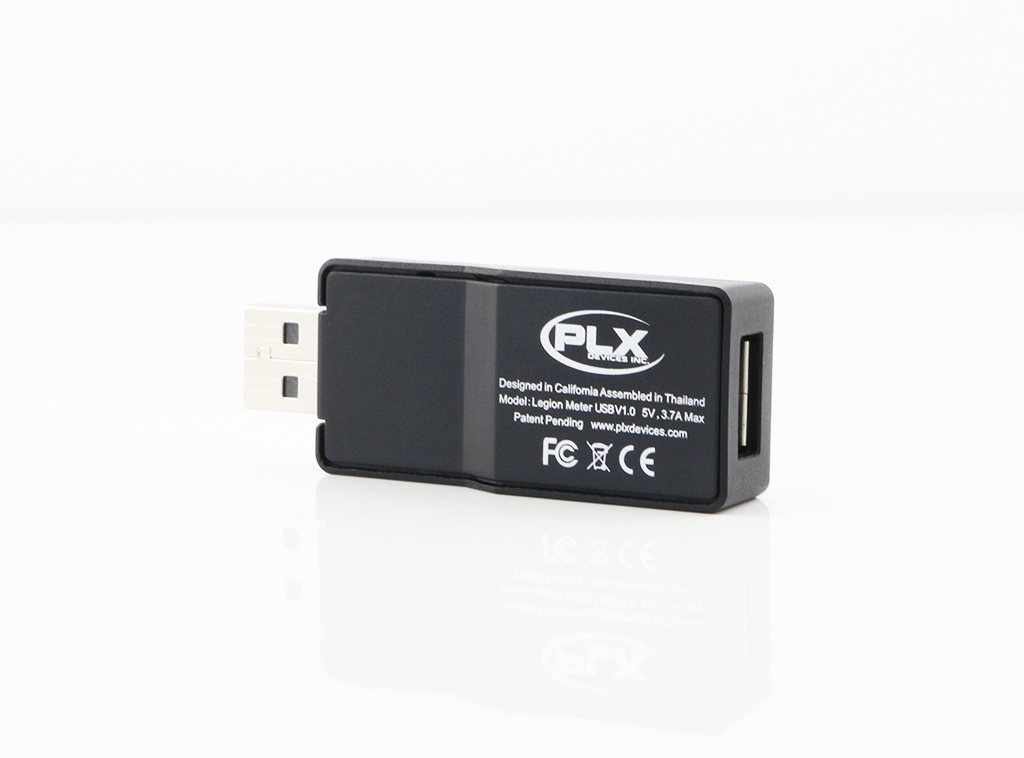

Legion Meter - Charge accelerator, Multimeter, and Data Protection. Measures USB voltage, current, power, and milliwatt hours on the integrated OLED display. Legion Meter installs in seconds and is fully plug and play. Patent Pending

Price: $69.99
Sale Price: $29.99
Savings: $40.00

Product Code: 897346002764
This product has been retired. Click here to check out Legion Solar!

Description Technical Specs Extended Information

Legion Meter is a device that can safely accelerate your smartphone/tablet's charging speed up to 92%. It also features a built-in multimeter for displaying voltage, current, power, and milliwatt hours on the integrated OLED display. Legion Meter installs in seconds and is fully plug and play.

Legion Meter's intelligent algorithms learn how you're using your devices and calculates your energy usage at roughly 500 times/second giving you ultra accurate power metering. Legion Meter's high contrast OLED display shows you precisely your USB port's voltage, current, power and also includes a precise mAh capacity meter counter for you to diagnose the batteries of all of your portable electric devices.

Legion Meter has two selectable modes of operation, Charge Acceleration/Data Protection and Data Passthrough. In charge acceleration mode, the data lines D+ and D- are physically cut from the input of side to the output side of Legion Meter. This completely denies any data from passing through to your device giving you ultimate data protection when charging your devices in public areas while simultaneously maximizing your charge speed. Data passthrough mode connects the D+ and D- USB data lines from the input side to the output side of Legion Meter allowing you to transfer data normally as you would with a standard USB cable.

Legion Meter's Watt Hour (mWh) mode is useful for analyzing the storage capacity of batteries. Much like how a gas pump counts the amount of volume of gas that gets pumped into a vehicle's gasoline tank, the watt hour meter measures the amount of energy or (Watt Hours) that gets charged into any battery. This is useful for discovering the true storage capacity of batteries. Press and hold the button to reset the counter to 0.

Legion Meter also employs many additional advanced features such as automatic screen saver mode, a double buffering graphics processor for seamless OLED transitions and intelligent battery monitoring algorithms and a dynamically switchable Apple and Android Charge Accelerator circuit.





Features

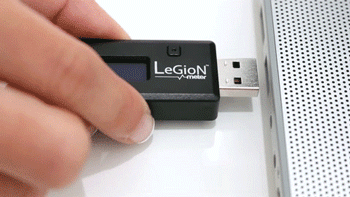

Installs in Seconds, Plug and Play
Integrated High Contrast Organic LED Display
Reads USB Voltage, Current, Watts
Resettable MilliWatt Battery Capacity Counter
Dynamically Switchable Apple and Android Charge Accelerator
Charge Accelerator/Data Protection and Data Passthrough Mode Switch
Compatible with all USB Ports

Included Items:
Legion Meter Unit
Legion Meter Product Box
Quick Start Guide

Average Rating: 4.5 of 5 Total Reviews: 2 Write a review »

  0 of 0 people found the following review helpful:

Awesome for tracking draw and testing cables November 17, 2016
Reviewer: dragon788
This meter lets me track the power draw of my phone/tablet/etc while also letting me "test" various cables by placing them between the meter and the phone and recording the different voltage/amperages drawn. This has helped me eliminate low quality cables that could cause my phone to lose charge even while plugged in.

Was this review helpful to you?

  0 of 1 people found the following review helpful:

legion meter review August 11, 2015
Reviewer: anirudh ganesh from chennai, tamilnadu India
watch this for review
http://youtu.be/8Et6Gn1Zn6U

Was this review helpful to you?
