DM-100 2 1/16" OBDII Multi-Gauge

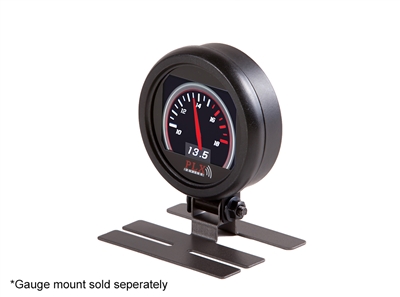

OBD OBD2 OBDII Multi Gauge for Automotive On-Board Diagnostic Scan



Alternative Views:




DM-100 OBDII Display Module 2 1/16" (52mm) Gauge for interfacing with your Onboard Diagnostic port and connecting up to 16 sensor modules in a daisy-chain. Integrated full color OLED Display and automatic sensor module detection for plug and play. Patented

Price: $259.99
Price: $199.99



Product Code: 897346002023
This product has been retired. Click here to check out the DM-100 Touch

Description Technical Specs Extended Information

The DM-100 OBD Multi Gauge is a powerful scan tool, code reader, and performance gauge all in one. It is compatible with 1996 and later vehicles and connection is made through the onboard diagnostic port (OBDII / CAN). The DM-100 Multi Gauge is designed to fit into most aftermarket 2 1/16" (52 mm) cups, and can be mounted for seamless integration into your vehicle. It's included 4 button remote makes navigating between the 26 OBDII sensors and 15 gauge views ultra-easy. Custom gauges, peak/hold, customizable colors and multiple gauge views are just some of its many features. The DM-100 is patent pending.

The DM-100 Multi Gauge incorporates a programmable 4 sensor output. This means that there are 4 equivalent programmable sensor modules built-in that allow you to stream OBD data through the digital iMFD port for additional interface with gauges and data logging applications. Powerful data logging features are available with the ScanXL PC software and the iMFD to PC Link USB cable. This feature enables you to data log both iMFD aftermarket sensors as well as select 4 of the available 26 OBD PIDs or parameters available. The DM-100 also has a OBD diagnositc mode which turns the built-in USB port into an ELM327 USB interface. The PC sees this as a standard COM port thus turning this gauge into a powerful scan tool where ELM327 diagnostic software is compatible.

The PLX DM-100 OBD Multi Gauge has taken the automotive display to a whole new level with its SEMA award winning design and brilliant color organic LED display. It's truly the world's most versatile gauge.
Features
Installs in seconds
Plug and play OBDII interface
Compatible with 1996 and later vehicles
26 OBDII Parameters
OLED Color Display
Read and Reset Check Engine Lights and codes
Customizable gauge styles
Analog, Digital, Graph, 4 Parameter view
Peak and Hold
Intelligent Warning
Daisy chain up to 16 PLX Sensor Modules
4 Button Interface
US and Metric Units
USB interface to PC

Additional Features:
Color Organic LED Technology (OLED)
View ECU Sensor Data
180 Deg Viewing Angle
High Contrast, Daytime visible
Multiple gauge styles (gauge, numeric, plot, 4 param, x-y scatter, custom)
Peak and hold (4 parameters, high and low)
Intelligent warning (4 parameter comparison)
Custom gauge design
4 button remote
Daisy chain topology
Custom wallpaper upload
Automatic sensor detection
Extruded aluminum construction

Included Items:
Multi-Gauge OBD II Module
2 1/16" or 60mm Universal OLED Display
6ft 4 button remote
4ft power wire with 2.1mm connector
1ft Serial Cable
6ft USB Cable
Comprehensive User Guide

Awards:
Winner SEMA Best New Interior Accessory Award 2008
Winner
SEMA Best New Mobile Electronics Entertainment Award 2008
17 Global Media Choice Awards 2008
SEMA Runner Up Best New Interior Accessory 2007
8 Global Media Choice Awards 2007
